Multi-function Inverted Wimble Extraction Tank

Multi-function Inverted wimble extraction tank in order to convenient to read and write usually abbreviate to sloping wimble extraction tank. This extraction tank Can provide the material of water extraction, alcohol extraction solvents in volatile oil extraction and recycling dross, applicable to the diacolation, warm immersion, reflux, circulation impregnation, pressure or reduced pressure leaching and so on the many kinds of craft. It has the advantages of high efficiency, easy to operate.

Usages of Multi-function Inverted Wimble Extraction Tank

This extraction equipment is widely used in China traditional drug, foodstuff and chemistry for the technologies such as normal pressure, mini pressure, water decocting, and warm immersion, thermal circumfluence, compelled recycle and leakage, extraction of aroma oil and reclamation of organic.

Characteristics of Multi-function Inverted Wimble Extraction Tank

1. Multi-function inverted wimble extraction tank most striking features is slag very convenient, the heating effect is good;

2. The shape small, inverted cone shaped. Especially good for solvent extraction, extraction solvent can evenly upward movement from the bottom of the tank, and due to the reduced gradually from tank bottom to the top, very good to avoid the solvent of short circuit flow phenomena. At the bottom of the tank area is large, large area of produced liquid, the liquid quickly, not easy to block. Slag is convenient, the heating effect is good;

3. Extraction at the bottom of the tank with double filter plate design, divided into filter support plate and the main board. Double filter plate can open, convenient observation, easy to clean;

4. Feeding the feed hopper and large diameter butterfly valve, butterfly valve with a worm gear and worm closing device;

5. Equipment with a variety of heating methods and control function of extraction temperature, can achieve a variety of processes: ordinary decoction, dynamic backflow, continuous countercurrent extraction.

Technical Parameters of Multi-function Inverted Wimble Extraction Tank

Style No	TQD-500	TQD-1000	TQD-2000	TQD-3000	TQD-6000
Volume(L)	750	1200	2300	3400	6400
Tank design pressure(MPA)	0.09
Jacketed layer design pressure(MPA)	0.3
Compressed air pressure(MPA)	0.6-0.7
Feeding gate diameter(mm)	150	200	200	300	350
Inclined gate diameter(mm)	800	1000	1200	1500	1700
Heating are(㎡)	2.0	3.2	5.3	6.8	8.5
Condensation area (㎡)	3	4	4	6	8
Cooling area(㎡)	0.5	1	1	1	2
Energy consumption	145	195	258	245	552

Notes:

Technical parameters of extracting tank can be adjusted according to the actual working condition of physical properties.

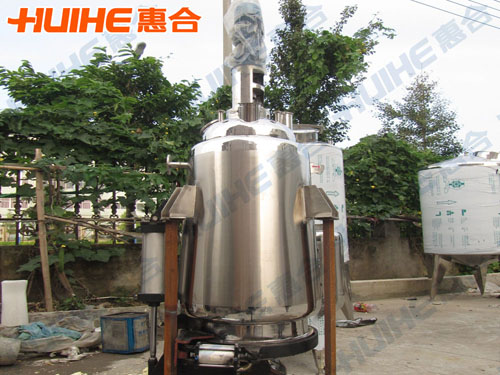

Multi-function Inverted Wimble Extraction Tank Finished Picture
